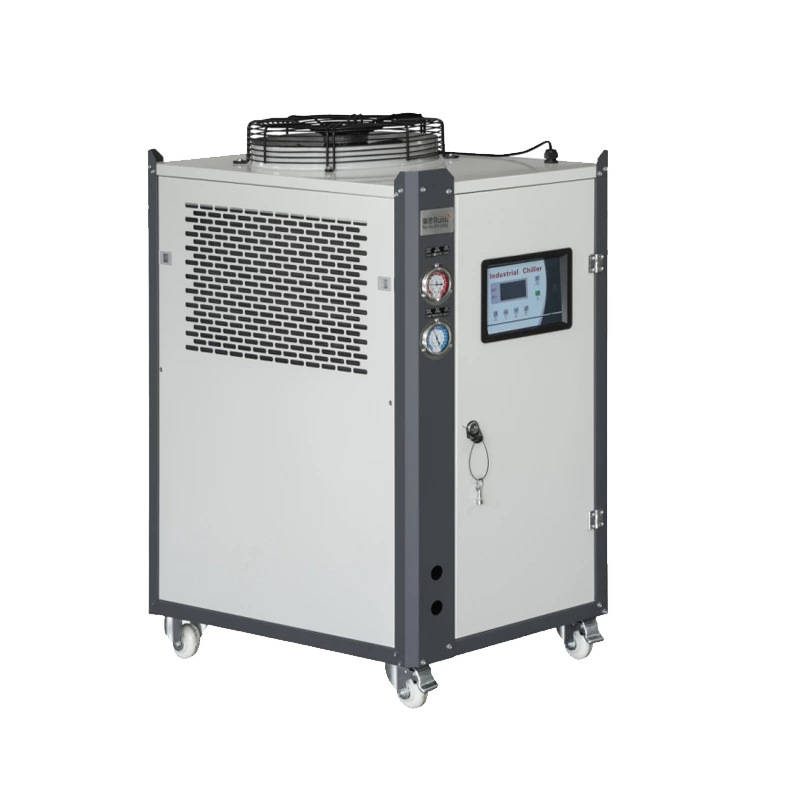

ZQZIP®-U3W Air-cooled Chiller
EnquiryMAIN TECHNICAL PARAMETERS:
| Parameter/Model | ZQZIP®-U3W | ||
| Cooling Capacty | KW | 8.72 | |
| Kcal/h | 7500 | ||
| Totallnput | Kw | 3.85 | |
| Power Supply | 3N-380V 50HZ | ||
| Refrigeran | Name | R22a/R407c/R134a/R410a | |
| Control Type | External Balanced Themostatic Expansion valve,Electronic Expansion Valve | ||
| Compressor | Type | Hermetic Scroll Type | |
| Motor | KW | 2.55 | |
| Protector | Compressor overheating protection,high and low voltage protection,current ovreload protection,antifreeze protection,phase-sequence protection | ||
| Condenser | Type | Parallel flow condenser | |
| Evaporator | Type | Copper coil evaporator, shell and tube heat exchanger or plate heat exchanger | |
| Pump | Type | All imports of high efficiency ,low noise centrifugal pumps or stainless steel pump | |
| Motor | kw | 0.45 | |
| Dimension | Length | MM | 960 |
| Width | MM | 540 | |
| Height | MM | 1170 | |
★Cooling capacity reference;Inlet12°C,cold wateroutlet7°C coldwater,amiet temperature35°C.
